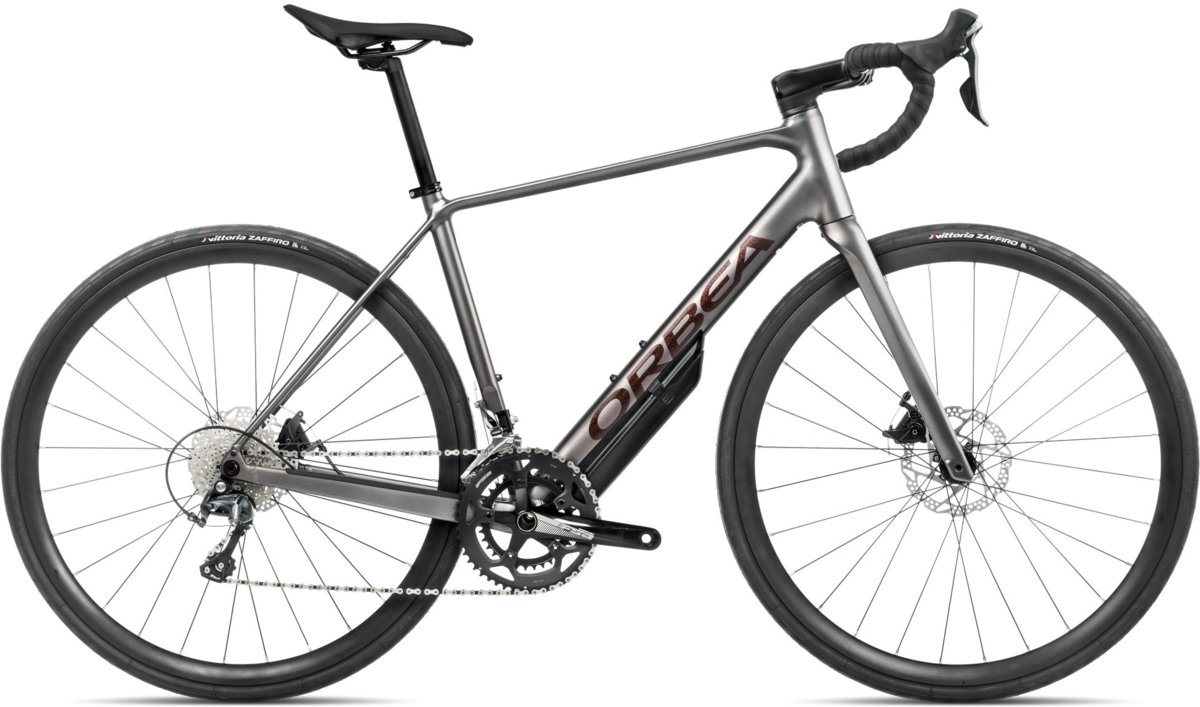

Orbea Avant H40

Orbea Avant H40
  • Color: Magnetic Bronze (Matt) - Cosmic Bronze (Gloss)
$1,519.20
$1,899.00
Color: Magnetic Bronze (Matt) - Cosmic Bronze (Gloss)
Size: Select size
Wheel Size: 700c
Please select options Unavailable

Details

A perfect companion, no matter how far the road takes you. Fill your water bottles every time you head out because with Avant's blend of speed and comfort, you could be out for a long ride.

Geometry Chart:
47495153555760
Seat Tube (C-T) 420 445 470 495 520 545 575
Top Tube (EFF) 515 531 544 558 570 587 599
Head Tube 111 130 149 169 191 211 231
Chainstay 420 420 420 420 420 420 420
BB Drop 78 78 78 78 76 76 76
BB Height 263 263 263 263 265 265 265
Wheelbase 996 1003 1010 1019 1030 1042 1051
Head Angle 70,5 71 71,5 71,8 72 72,2 72,5
Seat Angle 74,5 74 73,75 73,75 73,75 73,2 73,2
Rake - - - - - - -
Standover 673 699 723 749 777 802 831
Reach 370 375 380 385 391 398 404
Stack 525 545 565 585 605 625 645
Sizes:
SizeHeight (in)
47 61.1"-63.0"
49 63.0"-65.4"
51 65.7"-67.7"
53 68.1"-70.5"
55 70.9"-72.8"
57 73.2"-75.2"
60 75.6"-81.5"

Specs

Frame Orbea Avant Hydro disc, hydroformed triple butted aluminium, HS 1,5" ICR, BB 68mm – BSC English, Thru Axle 12x142mm rear, thread M12x2 P1, Internal Cable Routing, SP 27,2mm, MMS system.
Fork Orbea Avant Hydro 2025, full carbon, 1-1/8" - 1,5" tappered head tube compatible, Thru axle 12x100mm, thread M12x2 P1
Wheels Alloy, Tubeless, 700c, 19c, 28H
Axles Front: Orbea Thru Axle 12x100mm M12x2 P1 Solid
Rear: Orbea Thru Axle 12x142mm M12x2 P1 Solid inner threaded
Tires Vittoria Zafiro V Rigid bead 700x28c
Crankset FSA Omega Megaexo 34x50t
Shifters Shimano Tiagra ST-4700
Front Derailleur Shimano Tiagra 4700
Rear Derailleur Shimano Tiagra 4700 GS
Cassette/Freewheel Sun Race CSMS1 11-34t 10-Speed
Chain KMC X10
Brakes Jagwire RideRever Mechanical Disc
Handlebars OC Road Performance RP31-R, Rise 15, Reach 70, Drop 125
Tape/Grips Orbea Eva
Stem OC Road Performance RP22, -5º
Seatpost SP 0.6, Alloy, 27.2mm, Setback 20
Saddle Fizik Aliante R5

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 47cm / 700c 08434446814273 S10247BD 210000053452
Magnetic Bronze (Matt) - Cosmic Bronze (Gloss) / 57cm / 700c 08434446814457 S10257BD 210000053450
